Problem Solving

Foundry

  • Sand Control
  • Chemically-bonded sand process equipment
  • Automatic Pouring

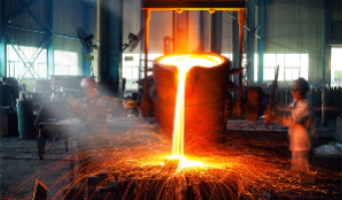

Pouring Work in Your Foundry may have following issues.
  • Defects
    Scabs, Sand inclusions, Blow hole
  • Experience
    Sluggish work, Spill, Shor pours
  • Environment
    Labor shortage
  • Quality
    Temperature control
Major reasons of casting defects are…
  • Cold shut
  • Low metal temp
Slow pouring speed
  • Collapse
  • washout
  • sanding
Fast
pouring speed
  • incineration
  • molten protrusion
  • defective
Pouring tempera-ture
  • Dimensional defects
  • Blow hole
Pouring volume
Basic functions of Econo-Pour

  • Smooth motion by Servo Motor

    +

    Metal flow control by Teaching System

  • VN control + Flow control through teaching + Brew break control through main brew weight

    +

    Pouring stop control by Weighing System

Smooth motion by Servo Motor (Forward/Backward, Up/Down, Tilt, Sideways(OP))
VN control + flow control by teaching + pour stop control by kettle weight

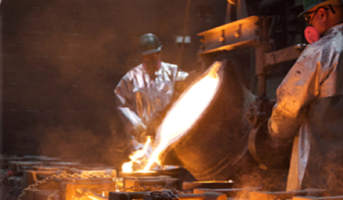

Manual Pour
  • Inconsistent pouring height
  • Metal spillage by shaking
  • Pulsing pour
  • Over pour

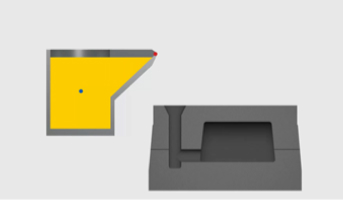

Automatic Pour (VN Control)

Control 3 axes simultaneously: tilt, forward, backward, up and down

↓

Predict and stabilize the spout (nozzle tip) while simultaneously maintaining the spout flow.

Model variations
Entry Model
FSOX
  • Easy installation
  • Single ladle size (500kg)
  • Semi-auto (1 cycle auto)
Standard Model
FVN
  • Various ladle size
  • Full automatic system
  • Rich optional items
Traceability Model
FVN＋Options
Optional items
  • In-stream inoculation
  • Temperature measuring unit
  • Test piece collection unit

Traceability data
Pouring Y/M/D, Serial number of mold/ladle, Pouring weight, Pouring time, Material, Pouring pattern, Cup location, Mold height, In-stream inoculation, Pouring temperature, Test piece number

Optional item

Traceability is available by adding options
