Problem Solving

Surface Treatment

  • Gear Peening
  • Airblasting Equipment for Hydraulic valve
  • Blast cleaning system for coiled wire, rod and deformed bar
  • MICROBLAST

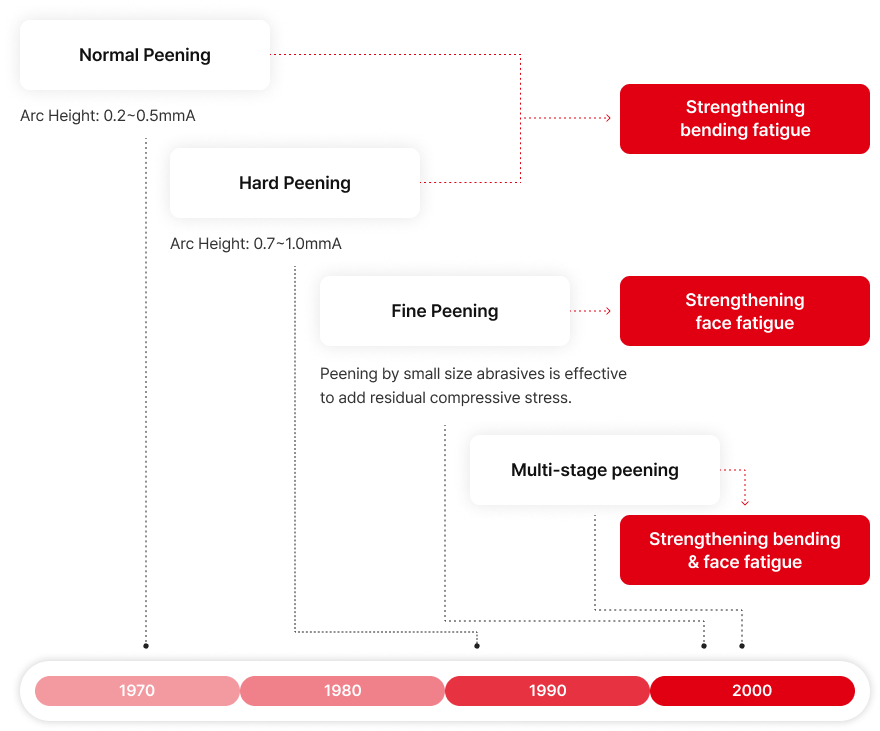

Gear Tooth Defects and Peening Technology

Peening process has been applied to increase bending & face strength

  • Bottom
  • Bending Fatigue
  • Face
  • Face Fatigue
Types of peening machine

There are 2 types by different abrasive acceleration system.

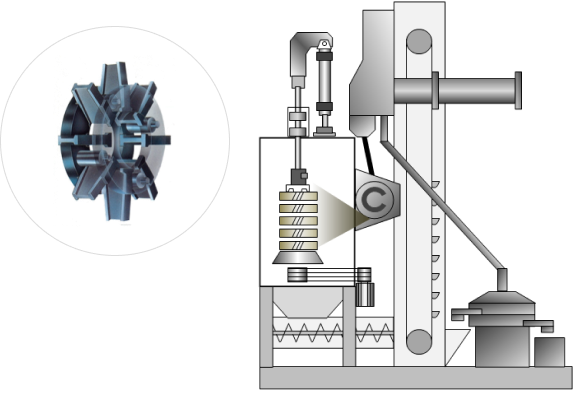

Centrifugal (impeller) type

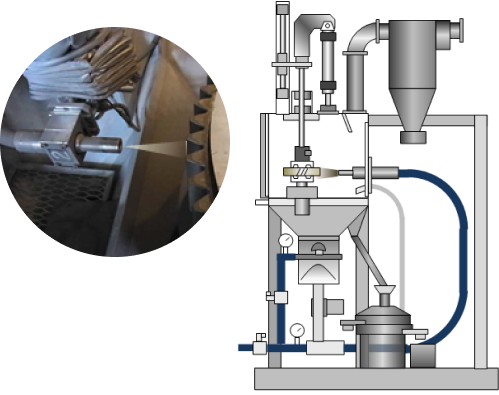

Pneumatic type
Pros & Cons
Centrifugal (impeller) type
  • Large processing area
  • Large shot projection volume
  • Less limitation of work shape
  • Adequate for batch treatment
  • Low intensity
  • Not good for spot peening
Pneumatic type
  • High intensity (good for spot peening)
  • Projection conditions (volume/angle) can be adjusted
  • Easy condition control
  • Small processing area
  • Not adequate for mass treatment

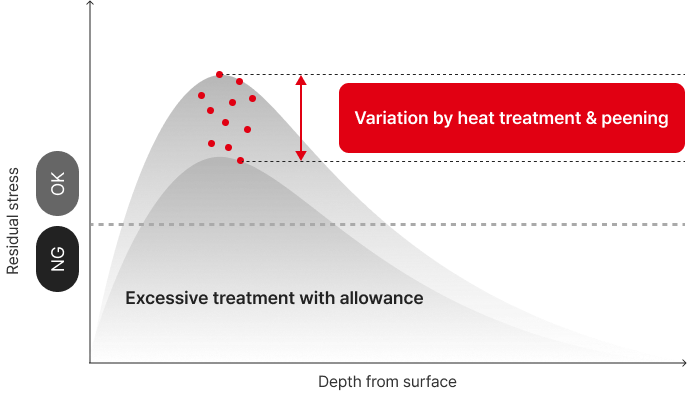

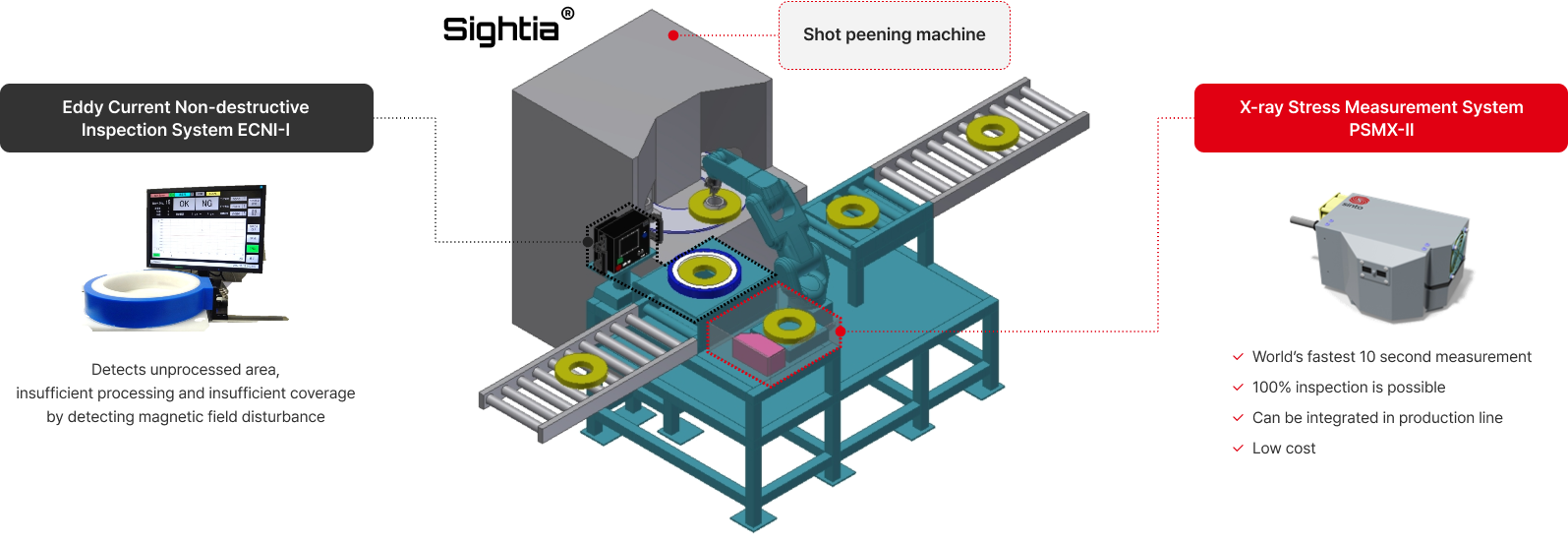

Surface Evaluation Technology

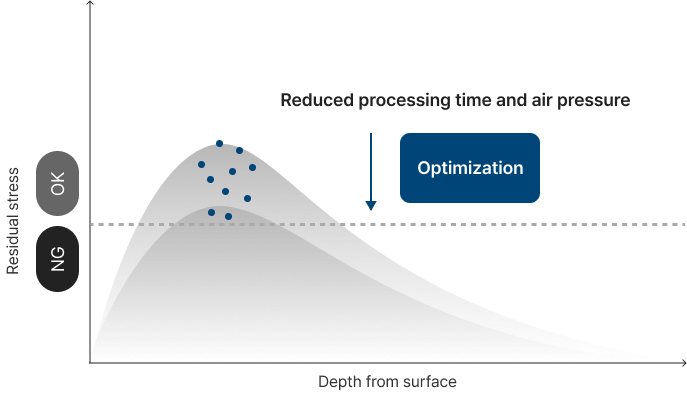

CN application case

Processing time : Planned 20 sec.

Processing time : After optimization by Sightia 10 sec.

CO2 reduction volume 78 Ton/Year
