Problem Solving

Environment

  • DUST MONITOR
Broken Filter Bag Detection

When there is breakage and leak in filter bag,

Problem
it is difficult to perceive them.
Solution
Dust leakage can easily be found by SINTO dust detector system.
Broken Filter Bag Detection

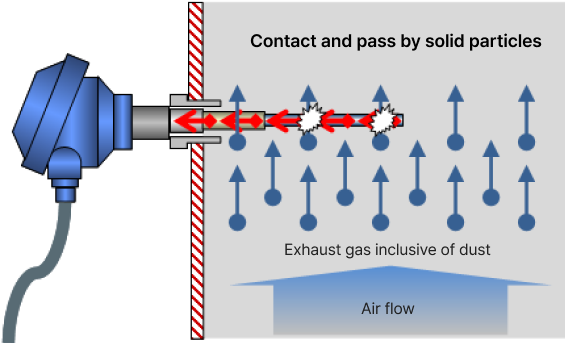

When solid particle (dust) contacts or passes near sensor, → electric charge move is generated.

Amount of electric charge is detected as current value, which is filtered and amplified.

Variation

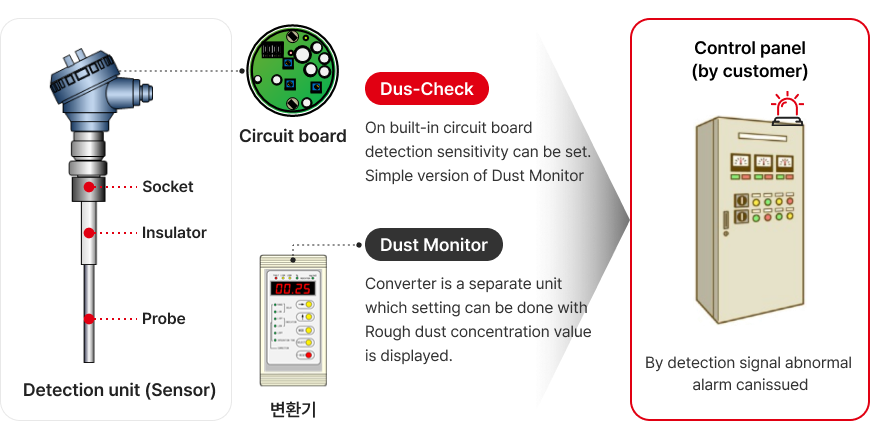

DUS-CHECK and DUST MONITOR

  • Dus-Check

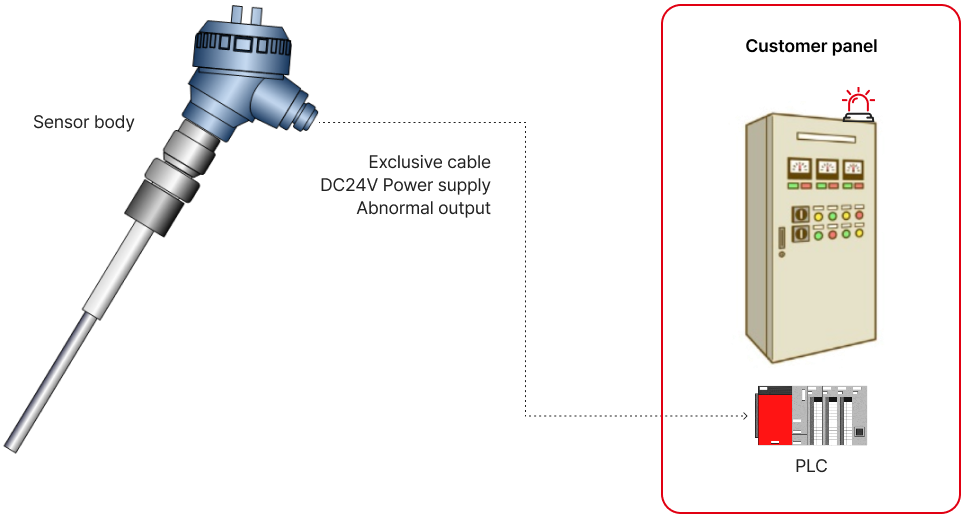

  • Standard Type
  • Dus-Check

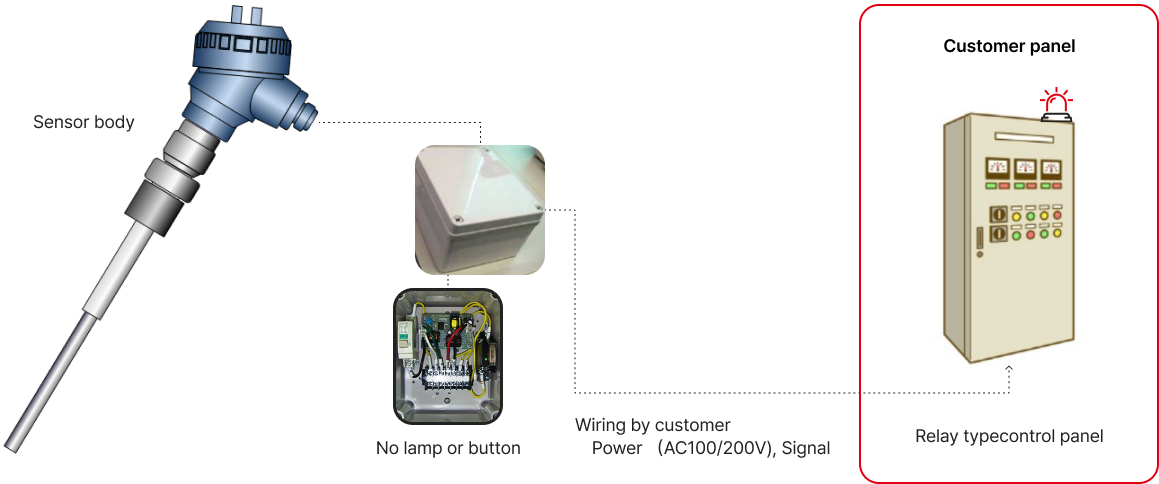

  • Relay contact output option
  • Dus-Check

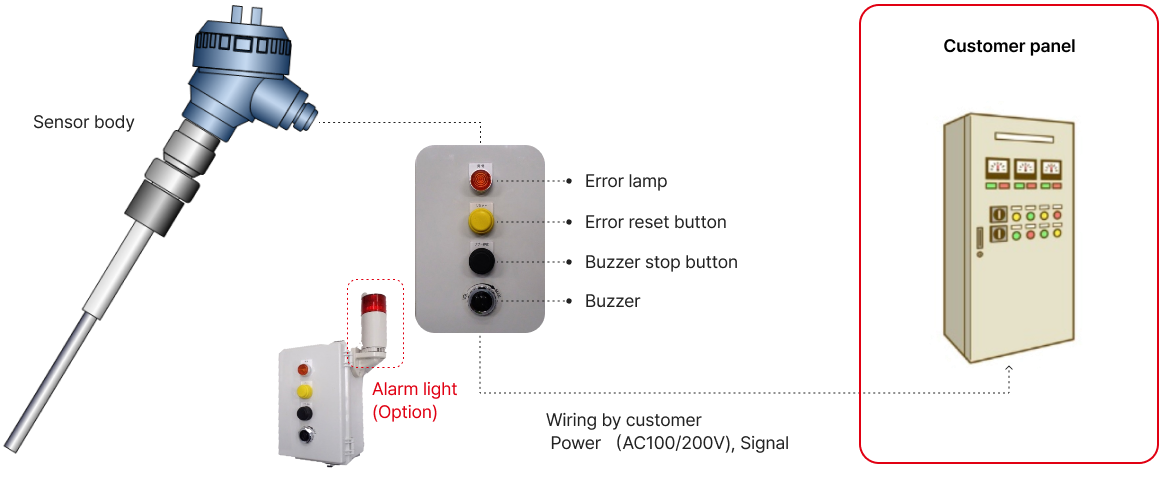

  • High-function option

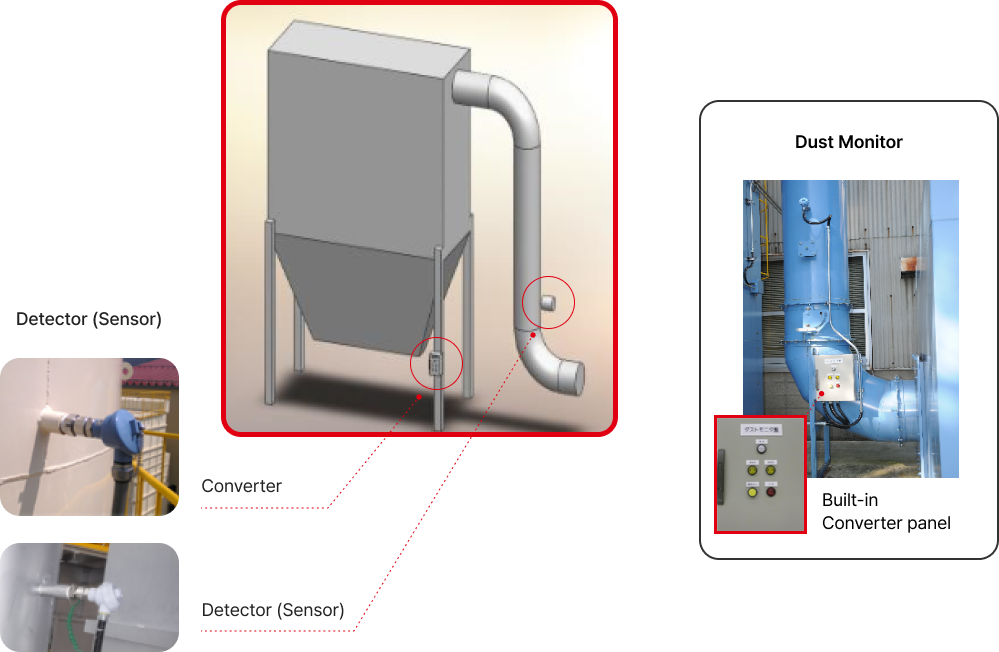

설치 예
Dust Monitor Dus-Check
Structure Sensor/Converter Separated Sensor/Converter Integrated
Sensor (Probe) Model SDM-S Model SDC-1001
Probe length 300㎜(Extension is available as an option) 50㎜
Ex. Gas temp. 250°C and under 80°C and under
Power supply AC110/220V DC24V(Sensor) AC100/200V(Optional)
Contact output Malfunction x 1, Upper limit x 2 x１
Alarm delay ～60 seconds ～10 seconds
Target gas Durable for corrosive gas (Optional) Not durable for VOC, acidic gas or oil mist
